bit for water well drilling from China manufacturer - Hejian Hengji Bit Manufacture Co.,Ltd

Price:	1000.0~10000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Air

Packing: Wooden case or as your requ...

Production Capacity: 200pieces/week

Delivery Date: 3--6 months

1.Stocks adequate, time delivery
2.Cutter's quality performance is good.
3.Rich experience in drill bit.

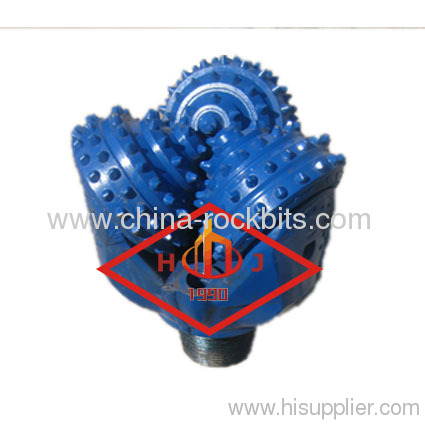

17steel tooth tricone bit for water well drilling

1.Deatails:

Available sizes:

60mm,65mm,76mm,93mm,95mm,98mm(3 7/8"),101.6mm,114mm,118mm,120mm,127mm(5")

130.1mm(5 1/8"),133.3mm(5 1/4”),139.7mm(5 1/2”),142.8mm(5 5/8”),149.2mm(5 7/8”)

152.4mm(6”),155.5mm(6 1/8”),158.7mm(6 1/4”),161.9mm(6 3/8”),165.1mm(6 1/2”)

190.5mm(7 1/2”),193.6mm(7 5/8”),200.0mm(7 7/8”)

212.7mm(8 3/8”),215.9mm(8 1/2”),222.2mm8 3/4”)

241.3(9 1/2”),244.4(9 5/8”),250.8(9 7/8”)

269.8(10 5/8”),295.3(11 5/8”)

311.1(12 1/4”),346.0 (13 5/8”),349.2(13 3/4”)

374.6(14 3/4”)

381(15”),393.7(15 1/2”),406.4(16”)

444.5(17 1/2”),508(20”),558(22”),609.6(24”)

660.4(26”)

2.Available models:

Steel tooth (IADC)	111, 121,131 117,124,126,127,136,137 211,311 216,217, 227
TCI (IADC)	415,435, 417,437 515,525,535,545, 517,527,537,547 615,625,635,,617,627,637,737 512,522,532,612,622,632,732

3.The advantages of our products.

1. Steel Tooth Tricone Bit for Soft Formation

TYPE: G13 (IADC----131)
APPLICABLE FORMATION: Soft Formations with low compressive strength: Clay rock, Gypsum, Shale, soft Limestone, Salt.
HARDNESS OF ROCK: f<2
WEIGHT RECOMMEND: 20-35kg/mm (Dia Bit) (1100-2000 lb/in)
ROTARY SPEED: 80-150rpm.

2. Steel Tooth Tricone Bit for Medium Formation

TYPE: G23 (IADC----241)
APPLICABLE FORMATION: Hard Sandstone, hard Shale, hard Gypsum, and soft Limestone with low compressive strength
HARDNESS OF ROCK: f<2
WEIGHT RECOMMEND: 20-63kg/mm (Dia Bit) (1100-3500 lb/in)
ROTARY SPEED: 70-80rpm.

3. Steel Tooth Bit for Hard Formation

TYPE: G33 (IADC----311)
APPLICABLE FORMATION: Hard sandstone, Granite, Quartzite, abrasive Shale with high compressive strength.
HARDNESS OF ROCK: f 5-8
WEIGHT RECOMMEND: 55-90kg/mm (Dia Bit) (3000-5000 lb/in)
ROTARY SPEED: 50-80rpm.

4. Steel Tooth Journal-sealed Bearings Bit for Hard Formation

TYPE: GHM33 (IADC-----311)
APPLICABLE FORMATION: Hard sandstone, Granite, Quartzite, abrasive Shale.
HARDNESS OF ROCK: f 3-6
WEIGHT RECOMMEND: 20-50kg/mm (Dia Bit) (1100-2800 lb/in)
ROTARY SPEED: 40-60rpm.

4.Packing and delivery

Packing: wooden case or as your requirements

Delivery: depend on the contract

5.Payment

Payment: T/T Western Union

I am Cherish at your service at any time!

All sizes and IADC codes of drill bits are available. Special requirements of different models can be customized.
